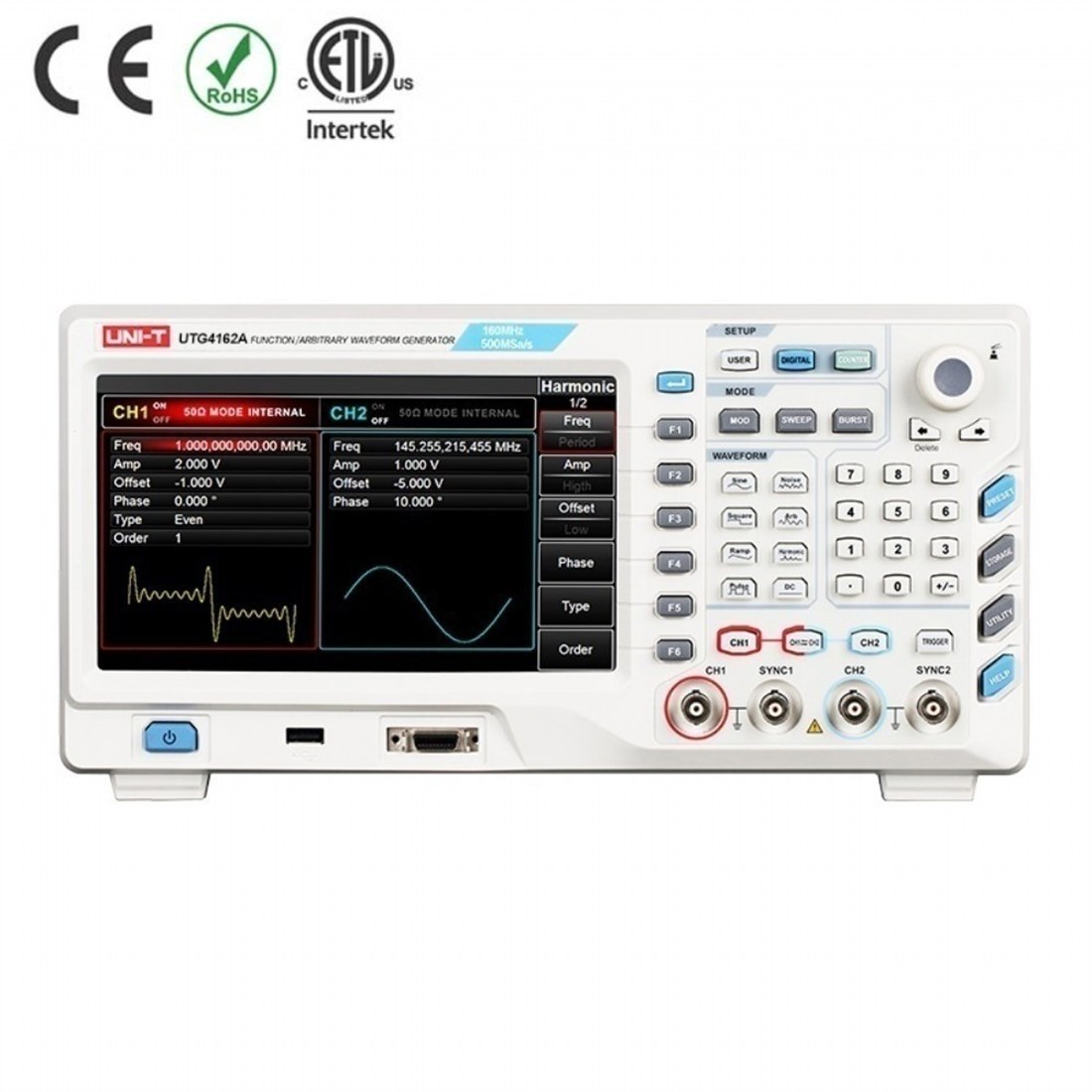

UTG 4162A Fonksiyon/Keyfi Dalga Biçimi Oluşturucu
UTG 4162A Fonksiyon/Keyfi Dalga Biçimi Oluşturucu

UTG 4162A Fonksiyon/Keyfi Dalga Biçimi Oluşturucu (UNIT-UTG-4162A)

0.0
İndirim Oranı : %56 İndirim
Fiyat : ₺113.885,99(KDV Dahil)
İndirimli : ₺50.109,84(KDV Dahil)
Specifications
Model UTG4162A
Bandwidth 160MHz
Channels 2
Sampling rate 500MS/s
Waveforms Sine, square, ramp, harmonic, pulse, noise, DC voltage, arbitrary
Working modes Output on/off, continuous, modulation, sweep, burst
Modulations AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, OSK, PWM, SUM, QAM
Frequency Characteristics
Sine 1?Hz~160MHz
Square/Pulse 1?Hz~50MHz
Slope 1?Hz~4MHz
Harmonic 1?Hz~80MHz
Noise (-3dB) 160MHz bandwidth
Resolution 1?Hz
Arbitrary Waveform
Frequency range 1?Hz~40MHz
Length 8~32Mpts
Vertical resolution 16 bits
Min rise/fall time (typical: 1Vpp) ?5ns
General Characteristics
Power 100V~240V ACrms, 50Hz/60Hz
Display 8-inch TFT LCD, WVGA (800 x 480)
Product color White and grey
Product net weight 3.5kg
Product size 336mm x 164mm x 108mm
Standard accessories BNC-BNC cable x 2, USB interface cable, power cord
Standard individual packing Carton box
Standard quantity per carton 1pcs
Standard carton measurement 405mm x 225mm x 265mmv
Standard carton gross weight 4.8kg
