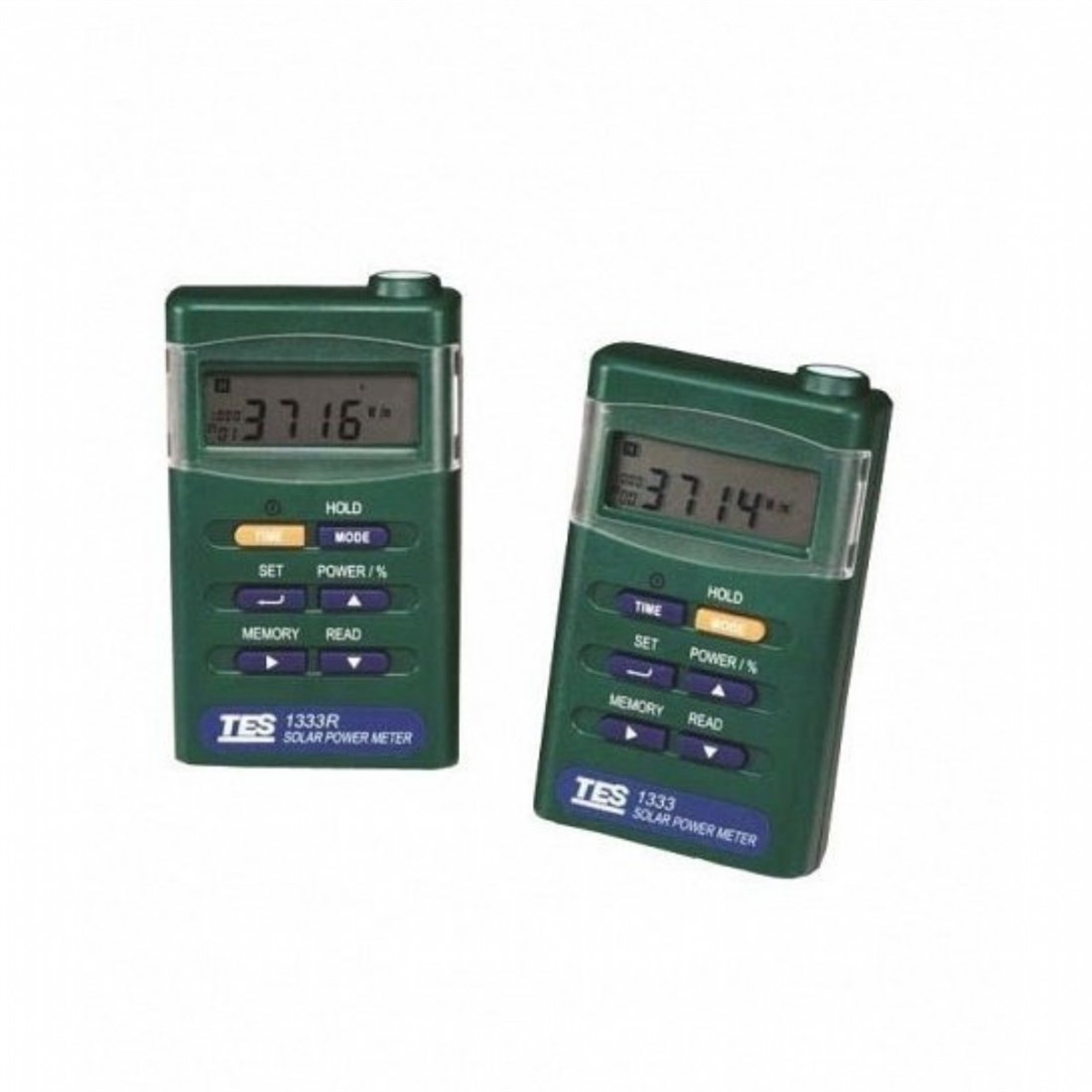

TES 1333 SOLAR GÜÇ ÖLÇER
TES 1333 SOLAR GÜÇ ÖLÇER

TES 1333 SOLAR GÜÇ ÖLÇER (TES-1333)

0.0
Fiyat : ₺2.895,43(KDV Dahil)
TES 1333 SOLAR GÜÇ ÖLÇER


Özellikler ve Değerler:


- Solar kuvvetin en verimli olduğu yeri bulur
- Geniş spektral menzil
- W/m2 ve Btu / (ft2 x h) değer göstergesi
- MAX / MIN / AVG kademeleri
- Solar enerji ölçümü
- Gerçek zaman ayarlama fonksiyonu


Display 3-1/2 digits.Max.indication1999
Range

2000W/m 2 ?634Btu/(ft 2 * h)

Resolution 1W/m2?1Btu/(ft2*h)
Spectral response 400-1100nm
Accuracy

Typically within ± 10W/m2[ ±3 Btu / (ft2*h) ] or ±5% , whichever is greater in sunlight; Additional temperature induced error ±0.38W/m2 / ? [ ±0.12 Btu / (ft2*h)/ ?] from 25?

Angular accuracy Cosine corrected <5% for angles <60 °
Drift <±2% / per year
Calibration User recalibration available
Over-input Display shows" "
Sampling Time Approx. 0.4 second
Manu data memory and read 99 sets
Auto data memory 32000 sets (TES-1333R)
Battery 4pcs size AAA
Battery Life Approx. 100 hours
Operating temp and humidity 0 ? to 50 ?below 80%RH
Storage temp and Humidity -10 ? to 60 ? below 70% RH
Weight Approx. 165g
Dimension 111(L)*64(W)*34(H)mm
Accessories Carrying Case, Operation Manual, 4 pcs size AAA, RS232 cable(for TES-1333R), CD saftware (For TES-1333R
