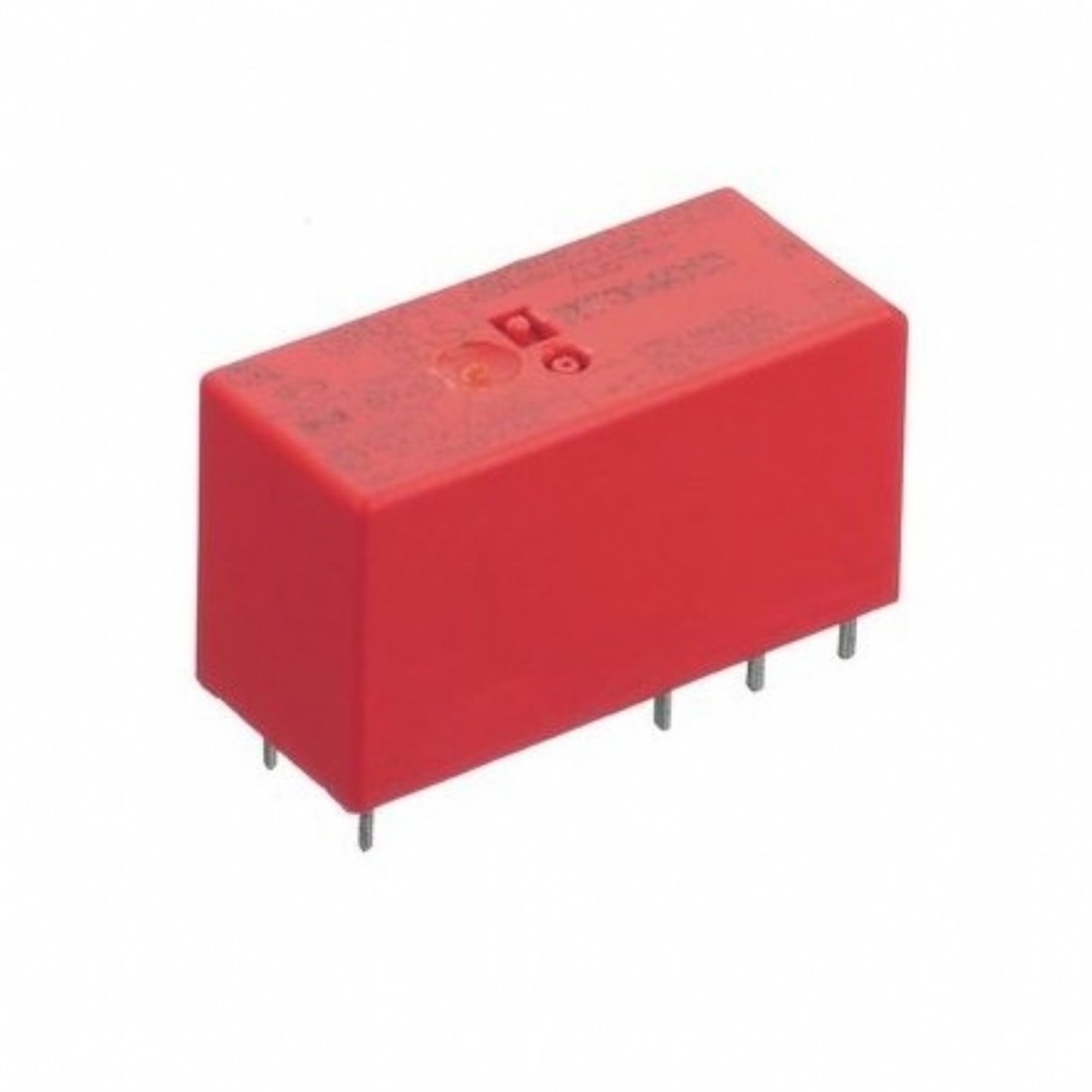

Schrack RT214012 PCB power relay 12VDC 400mW Fiyatları

Manufacturer	TE Connectivity
Type of relay	electromagnetic
Contacts configuration	SPDT
Rated coil voltage	12V DC
AC contacts rating @R (at resistance load)	12A / 250V AC
DC contacts rating @R (at resistance load)	12A / 24V DC
Contact current max.	12A
Switched voltage	max. 300V DC, max. 400V AC
Relay variant	miniature
Mounting	THT
Coil resistance	360?
Coil voltage min.	8.4V DC
Body dimensions	29x15.7x12.7mm
Coil power consumption	400mW
IP rating	IP40
Mechanical durability	30000000cycles
Operating temperature	-40...70°C
Weight	14g
Relay series	RT1
Switching capacity	3kVA
Contact material	AgNi
Terminal pitch	5mm
Height	15.7mm
Number of pins	5
Max surge current	25A

Schrack RT214012 PCB power relay 12VDC 400mW (SCHRACK-RT-214012)
