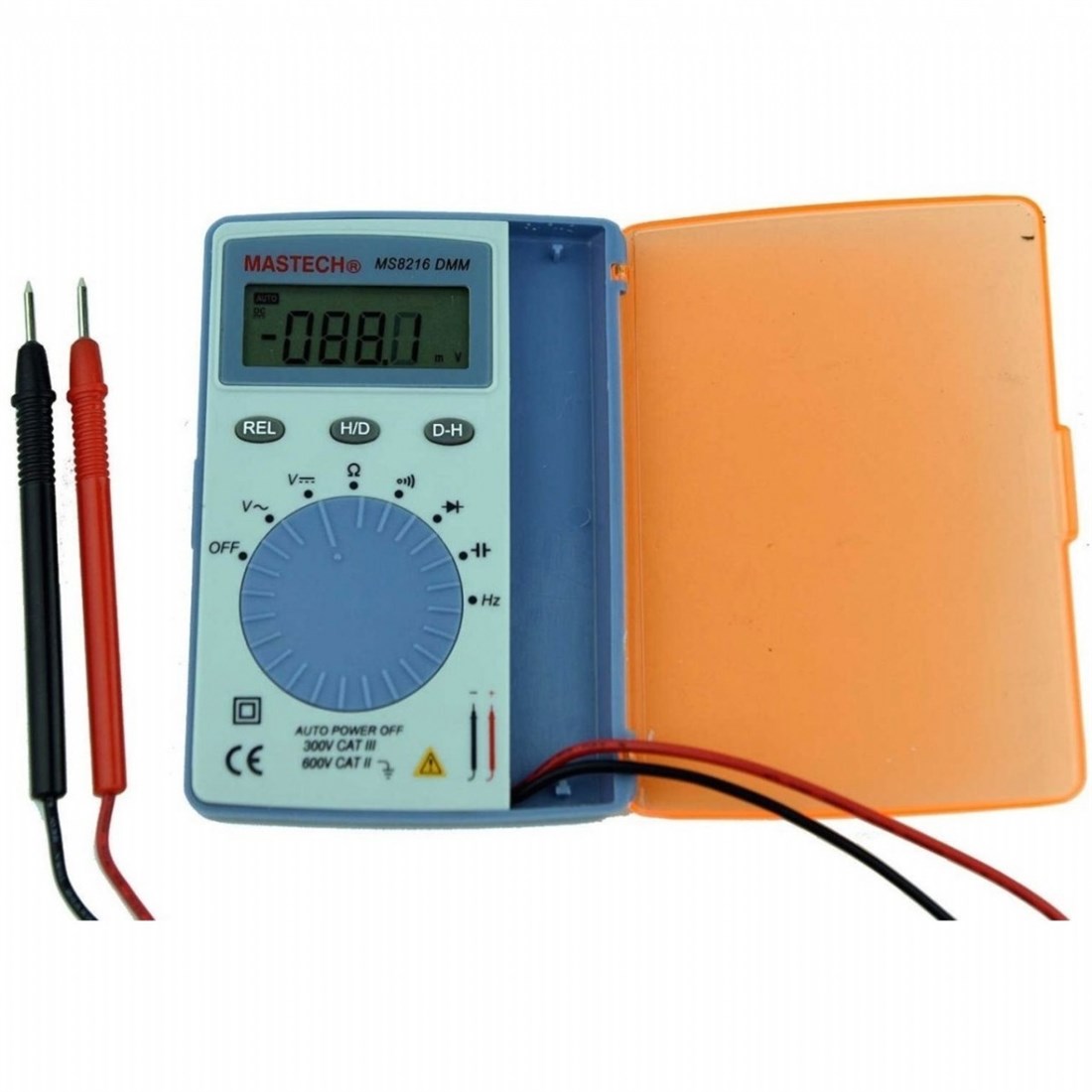

MS 8216 OTOMATİK AYARLI CEP TİPİ DİJİTAL MULTİMETRE (MASTECH-MS-8216)

Özellikler

4000 counts digital LCD display
It includes 7 function with 29 ranges
Low battery indication, overrange indication and polarity indication
Autoranging and Auto power off
Overrange protection for all ranges
Test AC/DC voltage, resistance, capacitance, frequency and duty cycle
Diode check and continuity test
Data hold and relative measurement

Teknik Özellikler
Max. Voltage Between Terminals and Earth Ground: 600V DC or rms AC
Operating Altitude: 2000 meters (7000 ft.) maximum
Max. Show Value: 3999 counts max
Sampling Time: approx. 0.4 second
Unit showing: showing of function and electrical capacity.

DC voltage:  400mV/4V/ 40V /400V/ 600V±(0.7 + 2)

AC voltage: 4V/40V/400V/600 v ±(0.8% + 3)

Resistance: 400ohm/ 4kohm/ 40kohm/ 400kohm/ 4Mohm±(1.2 + 2),  40Mohm±(2.0% + 5 )

Capacitance: 4nF/40nF/400nF/ 4uF/ 40uF/ 200uF±(3.0%  + 3 )

Frequency: 10Hz~200K Hz

Duty ratio: 0.1% ~ 99.9%± 3.0 %

Auto power off time: 15 min.
Power Supply: 2*1.5V(LR44 battery) (not included)
Temperature Factor: <0.1xAccuracy/Degree Centigrade
Operating Temperature: 0 to 40 Centigrade(32 to 104 Fahrenheti)
Storage Temperature: -10 to 50 Centigrade(10 to 122 Fahrenheit)
Dimension: 110x76x11mm
