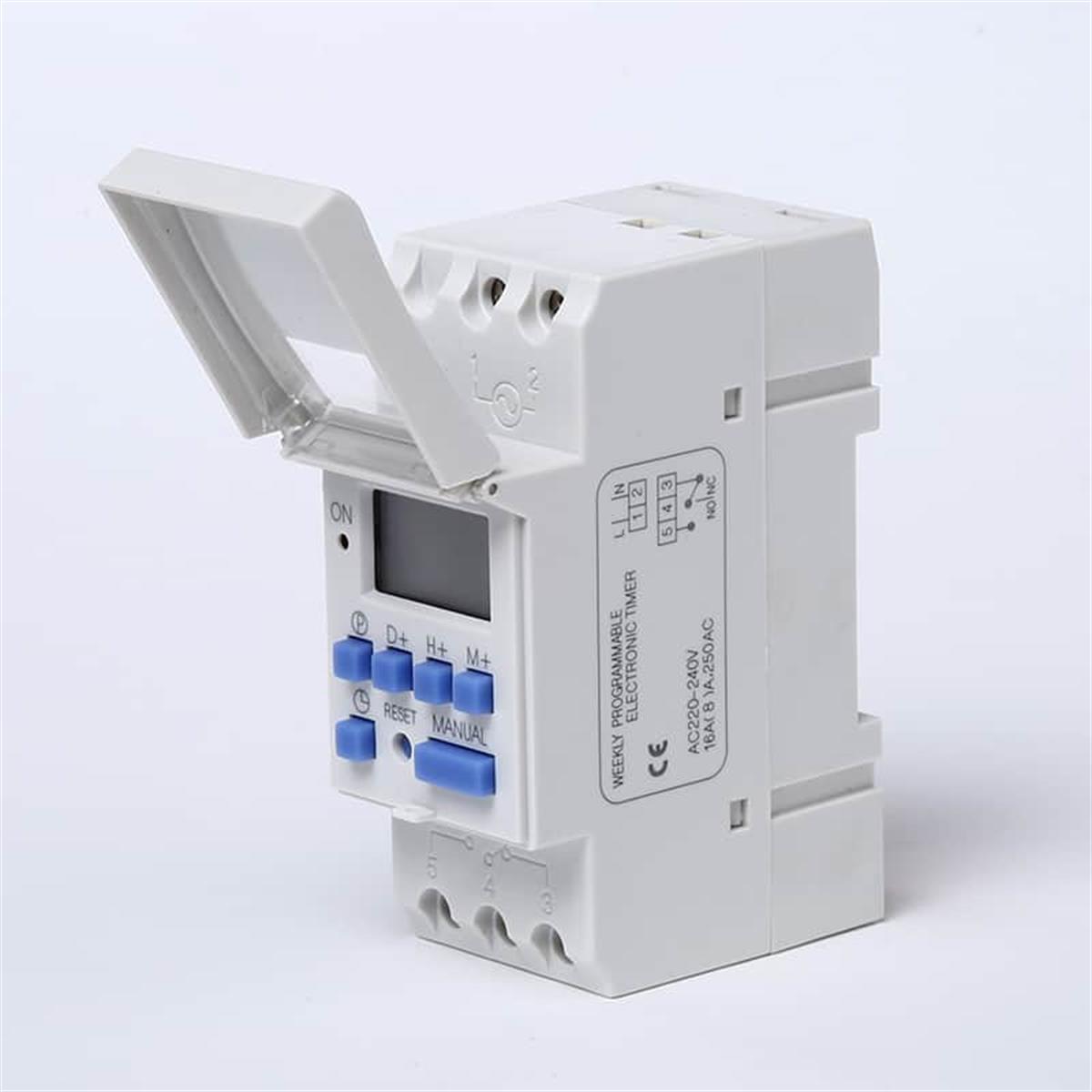

Haftalık Dijital Zaman Saati AHC 15 A
Haftalık Dijital Zaman Saati AHC 15 A
Haftalık Dijital Zaman Saati AHC 15 A

Haftalık Dijital Zaman Saati AHC 15 A (AHC 15 A)

0.0
İndirim Oranı : %50 İndirim
Fiyat : ₺729,71(KDV Dahil)
İndirimli : ₺364,86(KDV Dahil)

AHC15A serisi Haftalık Dijital Zaman Anahtar

1 kanal
Günlük ve haftalık program
16 AÇIK/KAPALI programı
20 darbe programı (1s~59m59s)
Geri sayım programı(1s~59dk59s)
12/24 saatlik format dönüşümü
Hesaplanan anahtarlama süreleri
Entegre çalışma saati sayacı
Otomatik düzeltme süresi (-30 sn ≤△t≤30 sn)
Önceden ayarlanmış tarih ve saat
Kalıcı açma/kapama
Entegre çalışma saati sayacı
Dahili lityum pil, elektrik kesintisi hafızası











Maximum Recommended Load (10,000 operations)







Filament / Halogen lamp 230V Energy-saving lamps LED lamp < 2 W LED lamp 2–8 W LED lamp > 8 W Fluorescent lamp load (electronic ballast)
2600 W 170 W 30 W 100 W 120 W 650 W







Technical Data







Fluorescent lamp load (conventional) not corrected 1000VA
Fluorescent lamp load (conventional)series-corrected 1000VA
Fluorescent lamp load (conventional)parallel-corrected 730 VA 80μF
Minimum interval 1 Min.
Time accuracy at 25 °C ≤± 2 Sek./day (quartz)
Housing and insulation material Self-extinguishing thermoplastic
Type of protection IP 20
Class of protection II according to EN 60 730-1
Permitted ambient temperature -10 ~ +50 °C (non-icing)
Test approval CE







Application





AHC15A digital timer switch fits for the particular use of the following tasks: Illumination of private and industrial areas, street and shop-window lighting, regulation of air conditioning, flushing, motors, pumps, plants, and machinery as well as to simulate presence, etc.
