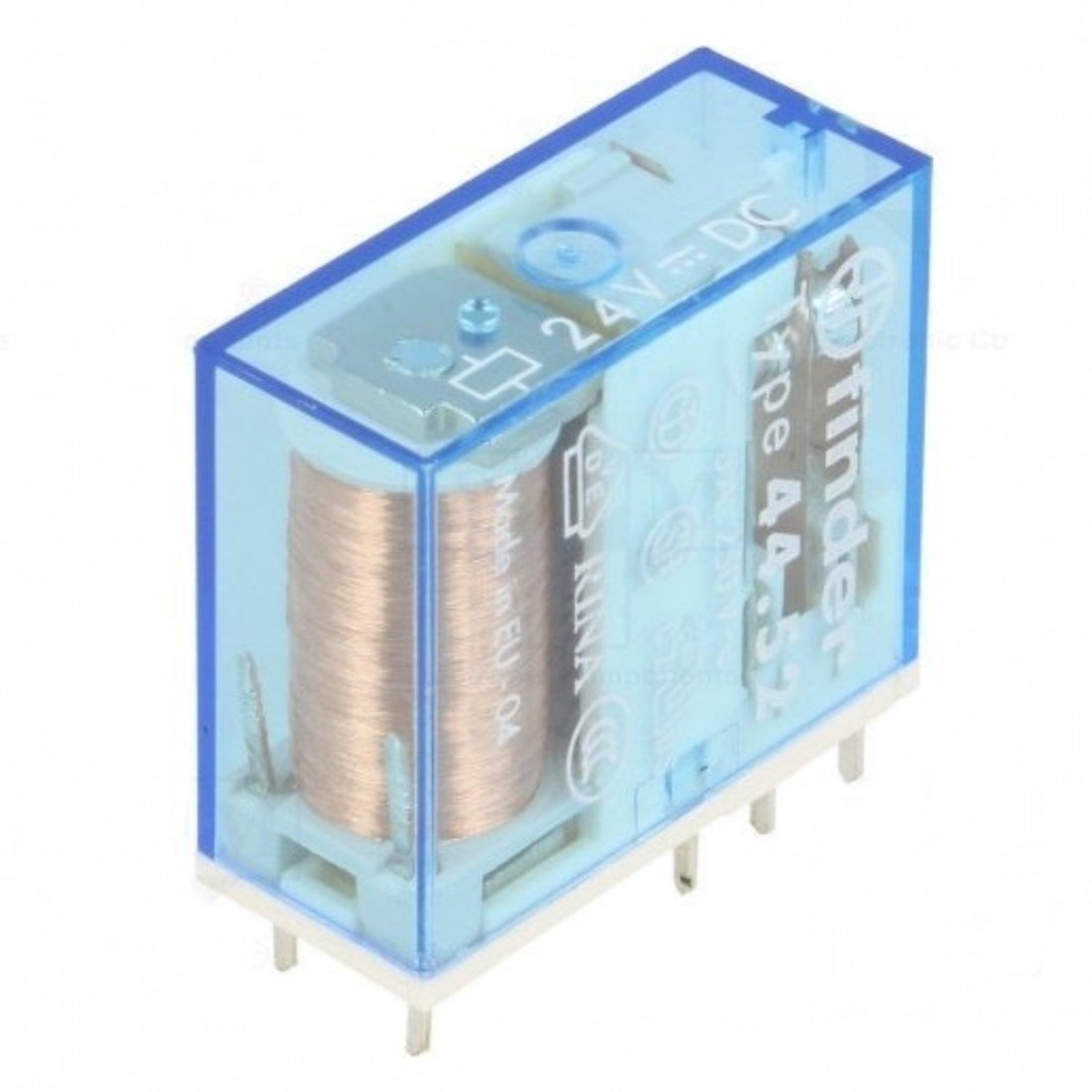

Finder 44.52.9.024.0000 Serisi Minyatür Pcb Röle Fiyatları

Manufacturer	FINDER
Type of relay	electromagnetic
Contacts configuration	DPDT
Rated coil voltage	24V DC
AC contacts rating @R (at resistance load)	6A / 250V AC
DC contacts rating @R (at resistance load)	6A / 30V DC
Contact current max.	6A
Switched voltage	max. 220V DC, max. 250V AC
Relay variant	miniature
Mounting	PCB, socket
Coil resistance	900?
Body dimensions	29x25x12.4mm
Coil power consumption	650mW
Operating temperature	-40...85°C
Relay series	44.52
Contact material	AgNi
Terminal pitch	5mm
Coil current	27mA

Finder 44.52.9.024.0000 Serisi Minyatür Pcb Röle (FİNDER-44.52.9.024.0000)
