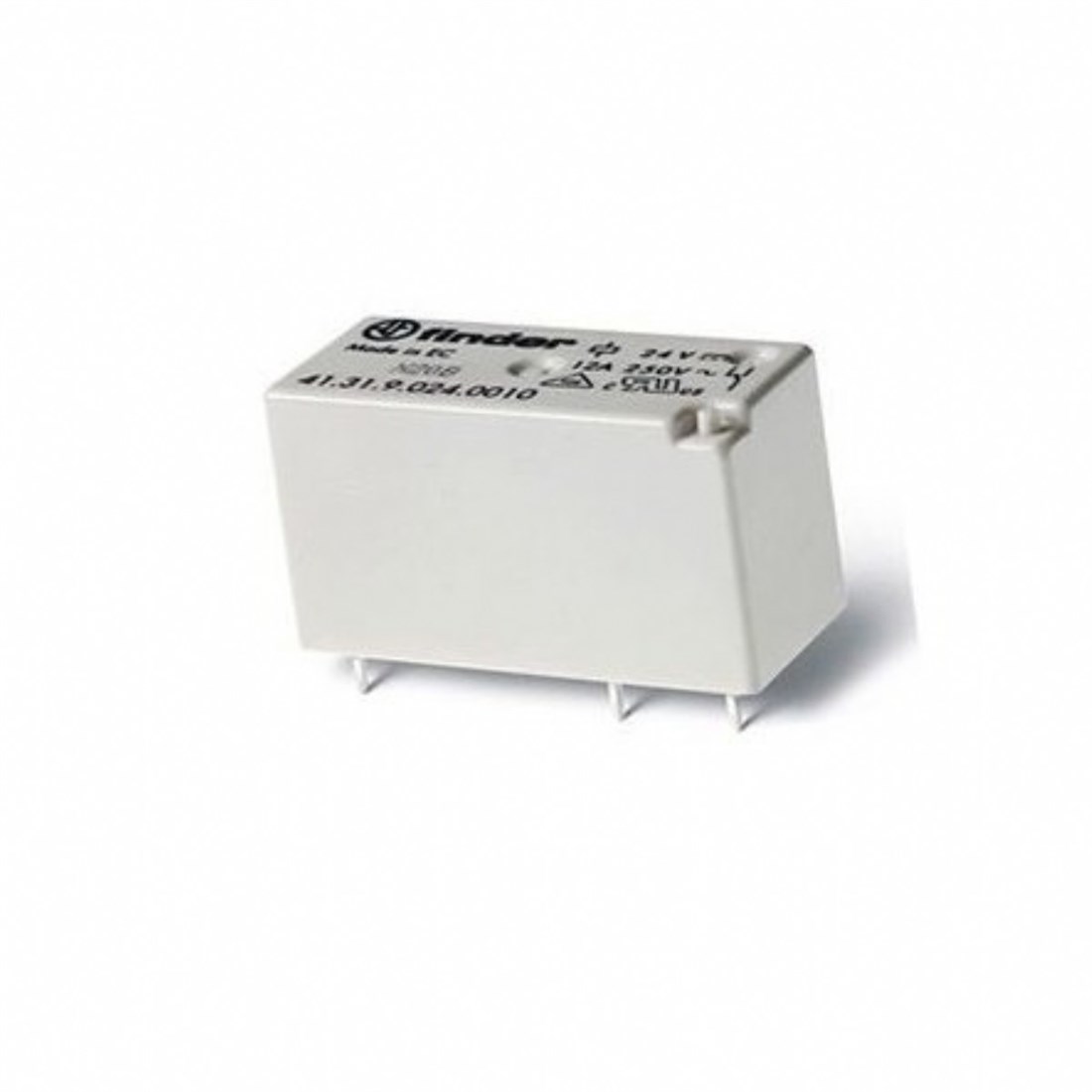

Finder 41.61.9.012.0010 5mm Pinli AgNi Lehim Dağılması Korumalı 1CO 16A Fiyatları

Manufacturer	FINDER
Type of relay	electromagnetic
Contacts configuration	SPDT
Rated coil voltage	12V DC
AC contacts rating @R (at resistance load)	16A / 250V AC
DC contacts rating @R (at resistance load)	16A / 30V DC
Contact current max.	30A
Switched voltage	max. 220V DC, max. 400V AC
Relay variant	miniature
Mounting	PCB
Coil resistance	360?
Coil voltage min.	8.4V DC
Coil voltage max.	18V DC
Body dimensions	29x12.5x15.7mm
Coil power consumption	400mW
Mechanical durability	3000000cycles
Operating temperature	-40...85°C
Relay series	41.61
Contact material	AgNi
Terminal pitch	5mm

Finder 41.61.9.012.0010 5mm Pinli AgNi Lehim Dağılması Korumalı 1CO 16A (FİNDER-41.61.9.012.0010)
