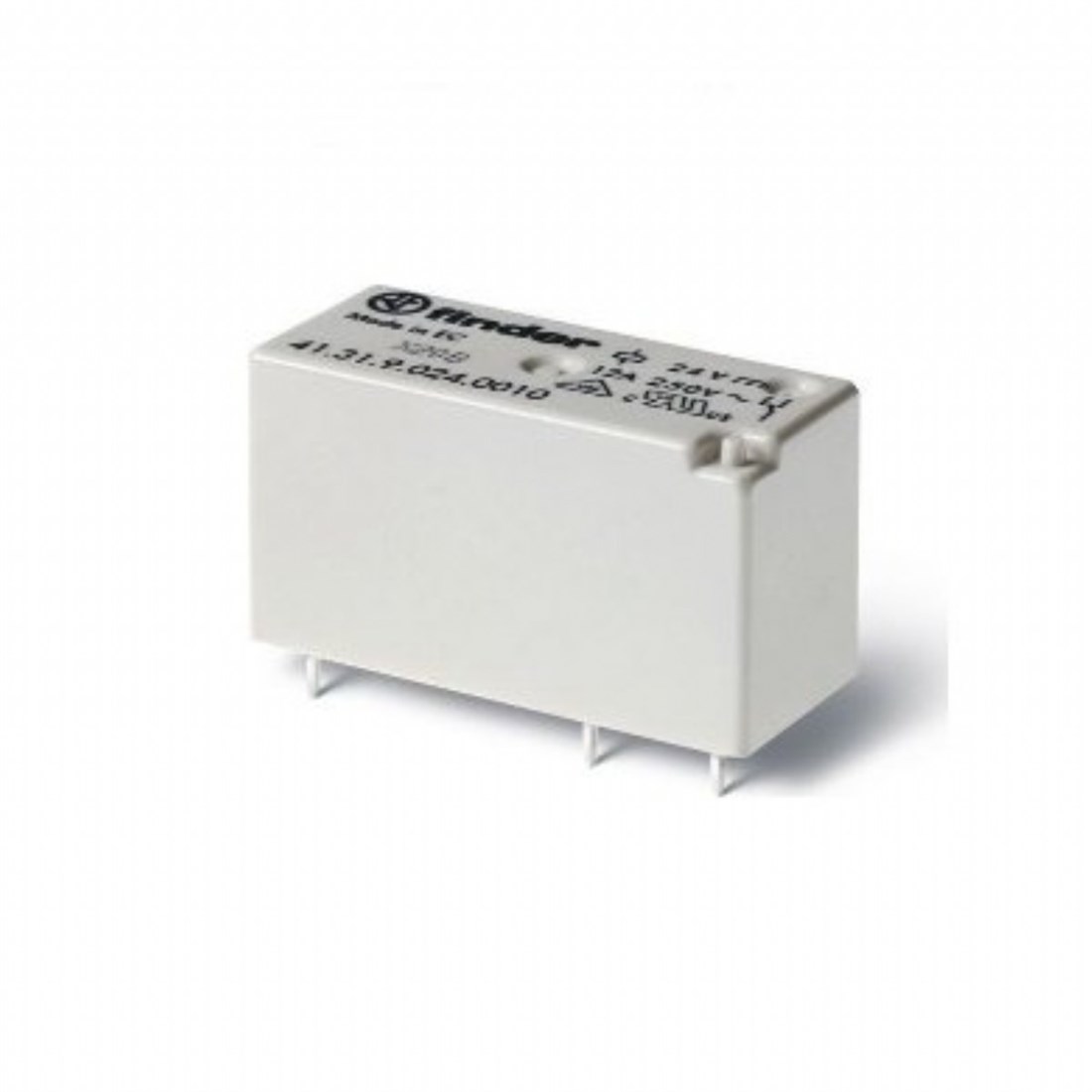

Finder 41.31.9.024.0010 3.5mm Pinli 24V DC AgNi Lehim Dağılması Korumalı 1CO 12A Fiyatları

Manufacturer	FINDER
Type of relay	electromagnetic
Contacts configuration	SPDT
Rated coil voltage	24V DC
AC contacts rating @R (at resistance load)	12A / 250V AC
DC contacts rating @R (at resistance load)	12A / 30V DC
Contact current max.	25A
Switched voltage	max. 220V DC, max. 400V AC
Relay variant	miniature
Mounting	PCB
Coil resistance	1.44k?
Coil voltage min.	16.8V DC
Coil voltage max.	36V DC
Body dimensions	29x12.5x15.7mm
Coil power consumption	400mW
Mechanical durability	3000000cycles
Operating temperature	-40...85°C
Relay series	41.31
Contact material	AgNi
Terminal pitch	3.5mm

Finder 41.31.9.024.0010 3.5mm Pinli 24V DC AgNi Lehim Dağılması Korumalı 1CO 12A (FİNDER-41.31.9.024.0010)
