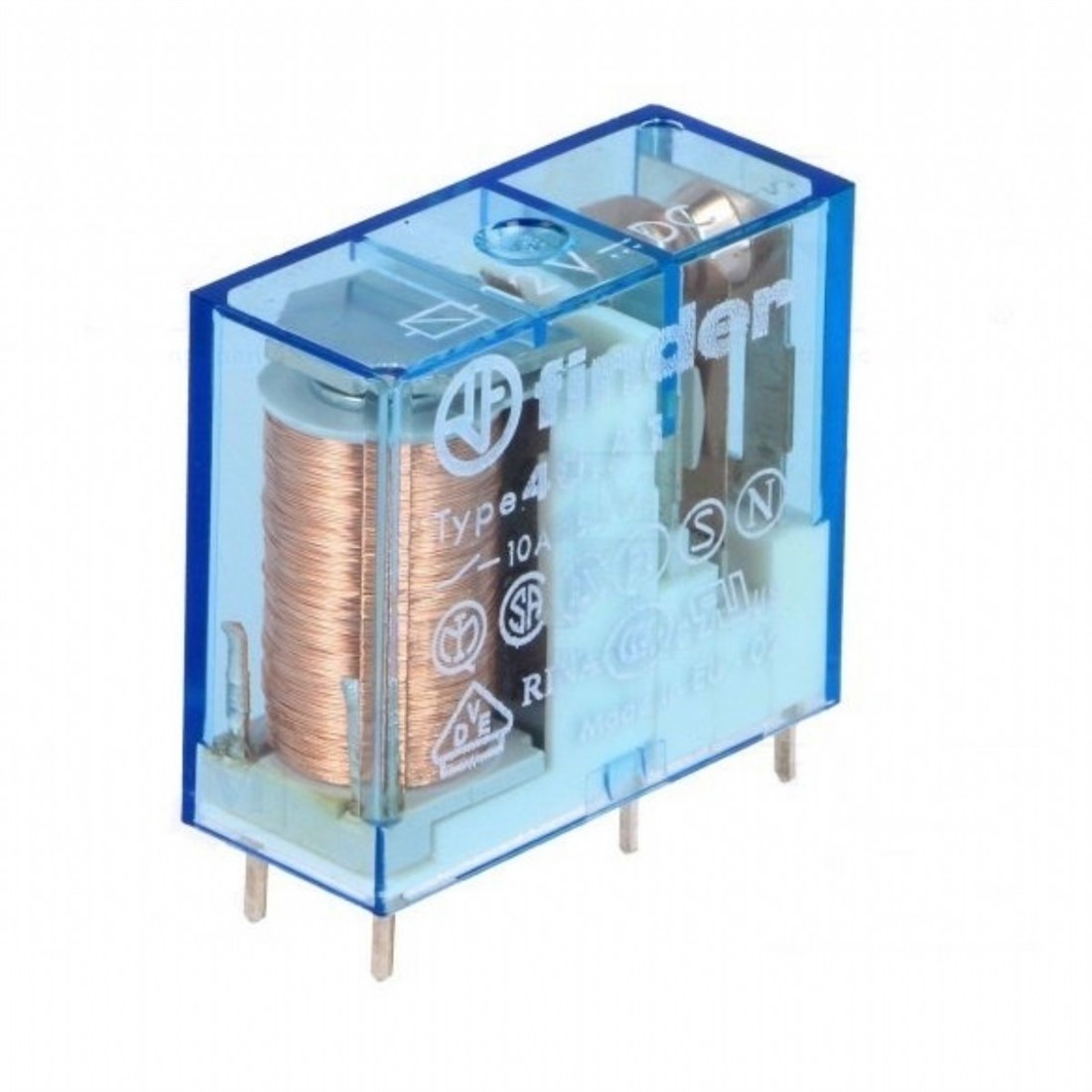

Finder 40.51.9.012 Serisi 12V DC Minyatür Pcb Röle Fiyatları

Manufacturer	FINDER
Type of relay	electromagnetic
Contacts configuration	SPDT
Rated coil voltage	12V DC
AC contacts rating @R (at resistance load)	10A / 250V AC
DC contacts rating @R (at resistance load)	10A / 30V DC
Contact current max.	20A
Switched voltage	max. 220V DC, max. 400V AC
Relay variant	miniature
Mounting	PCB, socket
Coil resistance	220?
Body dimensions	29x12.4x25mm
Coil power consumption	650mW
Operating temperature	-40...85°C
Relay series	40.51
Contact material	AgNi
Terminal pitch	5mm
Coil current	55mA

Finder 40.51.9.012 Serisi 12V DC Minyatür Pcb Röle (FİNDER-40.51.9.012)
