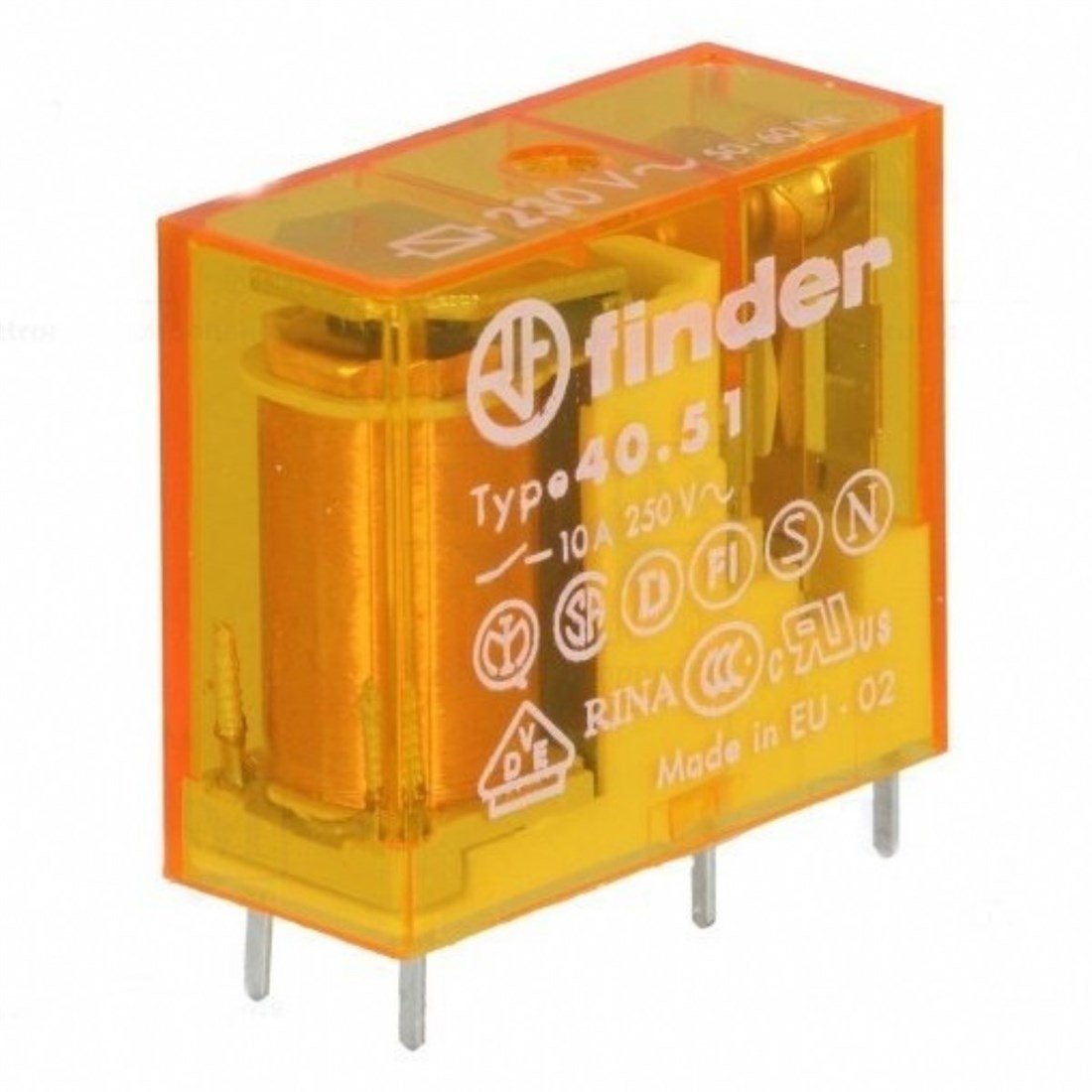

Finder 40.51.8.230 Serisi 230V AC Minyatür Pcb Röle Fiyatları

Manufacturer	FINDER
Type of relay	electromagnetic
Contacts configuration	SPDT
Rated coil voltage	230V AC
AC contacts rating @R (at resistance load)	10A / 250V AC
DC contacts rating @R (at resistance load)	10A / 30V DC
Contact current max.	20A
Switched voltage	max. 220V DC, max. 400V AC
Relay variant	miniature
Mounting	PCB, socket
Coil resistance	28k?
Body dimensions	29x12.4x25mm
Coil power consumption	1.2VA
Operating temperature	-40...85°C
Relay series	40.51
Contact material	AgNi
Terminal pitch	5mm
Coil current	5mA

Finder 40.51.8.230 Serisi 230V AC Minyatür Pcb Röle (FİNDER-40.51.8.230)
