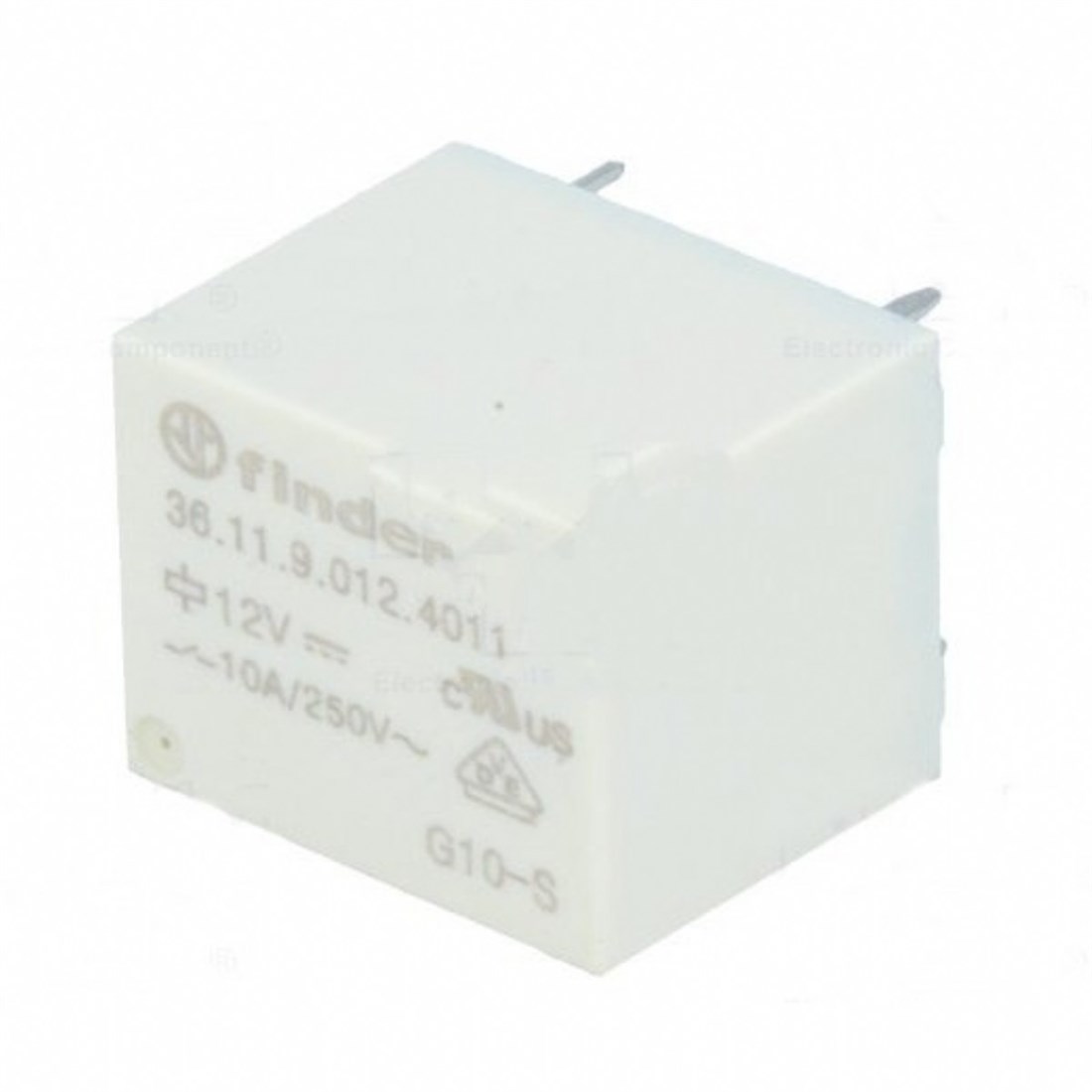

Finder 36.11.9.012.4001 Serisi Minyatür Pcb Röle Fiyatları

Manufacturer	FINDER
Type of relay	electromagnetic
Contacts configuration	SPDT
Rated coil voltage	12V DC
AC contacts rating @R (at resistance load)	10A / 250V AC
DC contacts rating @R (at resistance load)	10A / 30V DC
Contact current max.	15A
Switched voltage	max. 220V DC, max. 250V AC
Relay variant	miniature
Mounting	PCB
Coil resistance	400?
Coil voltage min.	9V DC
Coil voltage max.	18V DC
Body dimensions	19x15.5x15.5mm
Coil power consumption	400mW
Operating temperature	-40...85°C
Relay series	36.11
Contact material	AgSnO2
Terminal pitch	2mm

Finder 36.11.9.012.4001 Serisi Minyatür Pcb Röle (FİNDER-36.11.9.012.4001)
