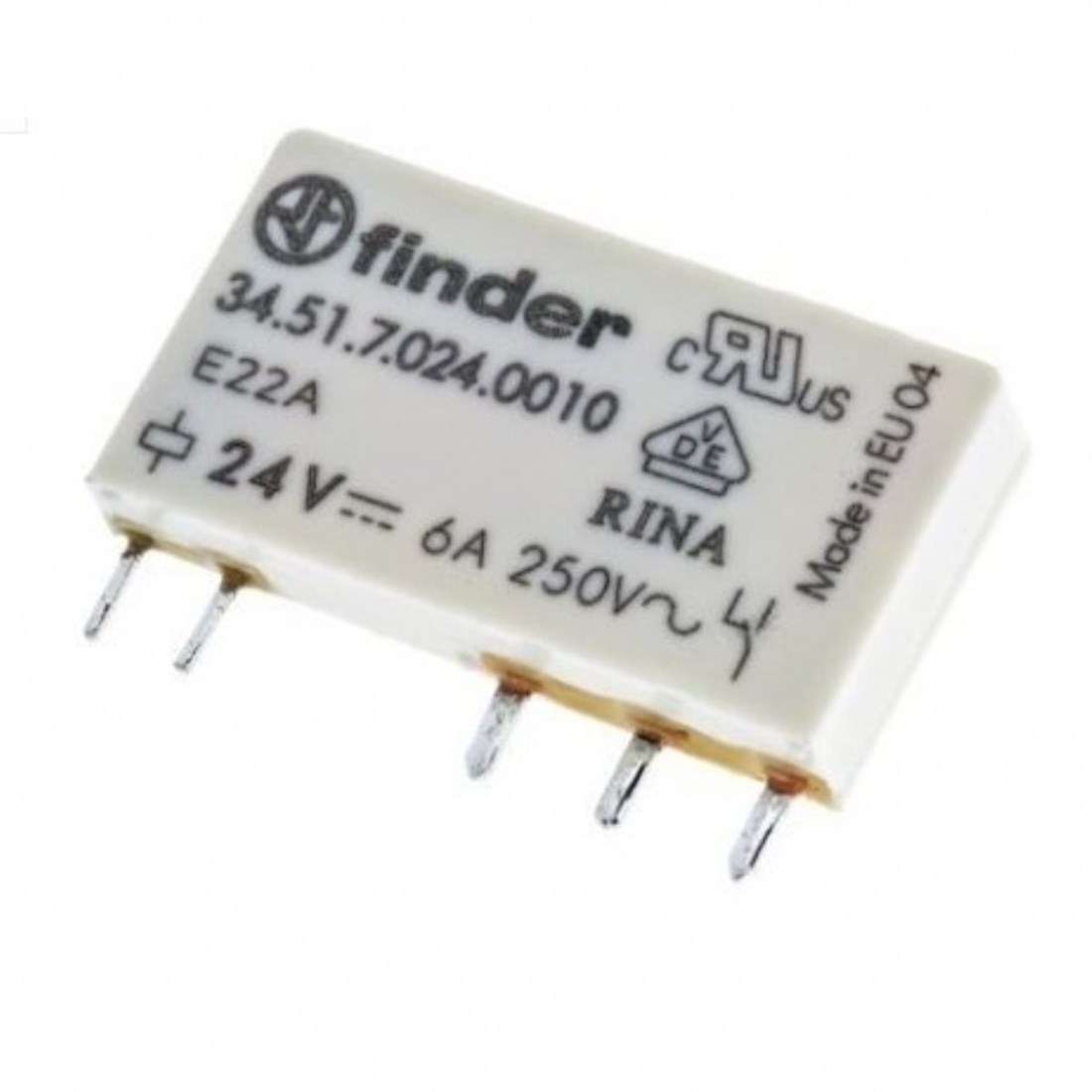

Finder 34.51.7.024.0010 Serisi Ultra İnce Pcb Röle Fiyatları

Manufacturer	FINDER
Type of relay	electromagnetic
Contacts configuration	SPDT
Rated coil voltage	24V DC
AC contacts rating @R (at resistance load)	6A / 250V AC
DC contacts rating @R (at resistance load)	6A / 30V DC
Contact current max.	6A
Switched voltage	max. 220V DC, max. 250V AC
Relay variant	interface
Mounting	PCB, socket
Coil resistance	3.35k?
Coil voltage min.	16.8V DC
Coil voltage max.	36V DC
Body dimensions	28x5x15mm
Coil power consumption	170mW
Mechanical durability	1000000cycles
Operating temperature	-40...85°C
Relay series	34.51
Contact material	AgNi
Terminal pitch	5mm
Coil current	7.1mA
Related items	93.01.7.024, 93.01.7.060, 93.11, 93.51.3.125, 93.51.3.240

Finder 34.51.7.024.0010 Serisi Ultra İnce Pcb Röle (FİNDER-34.51.7.024.0010)
