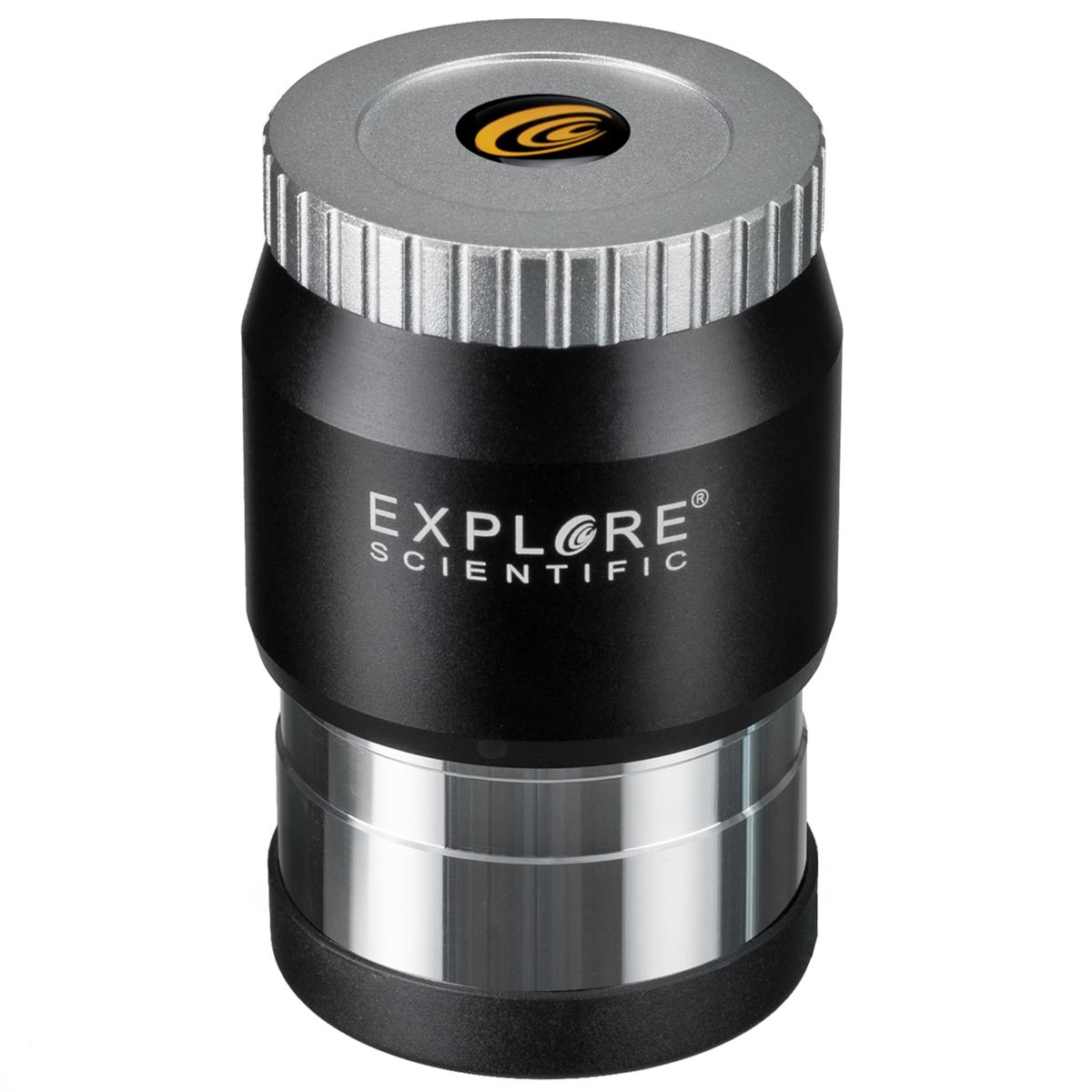

Field flattener without reduction factor for Explore Scientific ED80 and ED102 APO refractors
The imaging plane of many telescopes is not flat but curved. This means that only the area in the centre is perfectly focused – the edge becomes blurred. The human eye can usually compensate for this image property, but a camera shows increasing blurriness towards the edge of the image field. The Explore Scientific Zero X field flattener eliminates the field curvature in many telescopes with a focal length of approx. 480 to 720mm. The Zero X field flattener was calculated and developed for Explore Scientific ED80 and ED102 apochromats with focal ratios of f/6.0 and f/7.0. The image sharpness at the edge is dramatically increased. The stars appear round and no longer distorted – a clear benefit for the whole image aesthetics. The Zero X image flattener can be used not only with Explore Scientific Apos, but also with many other Apos. This flattener does not change the focal length of the telescope.
Correction for up to full-frame camera sensors (24x36mm)
The Explore Scientific Zero X image flattener has been developed due to the rapid development of ever larger camera sensors. With it, there is finally a field flattener available that illuminates and corrects the field of view for full-frame camera sensors up to 24x36mm.
How to use the Zero X field flattener with M48 thread connection

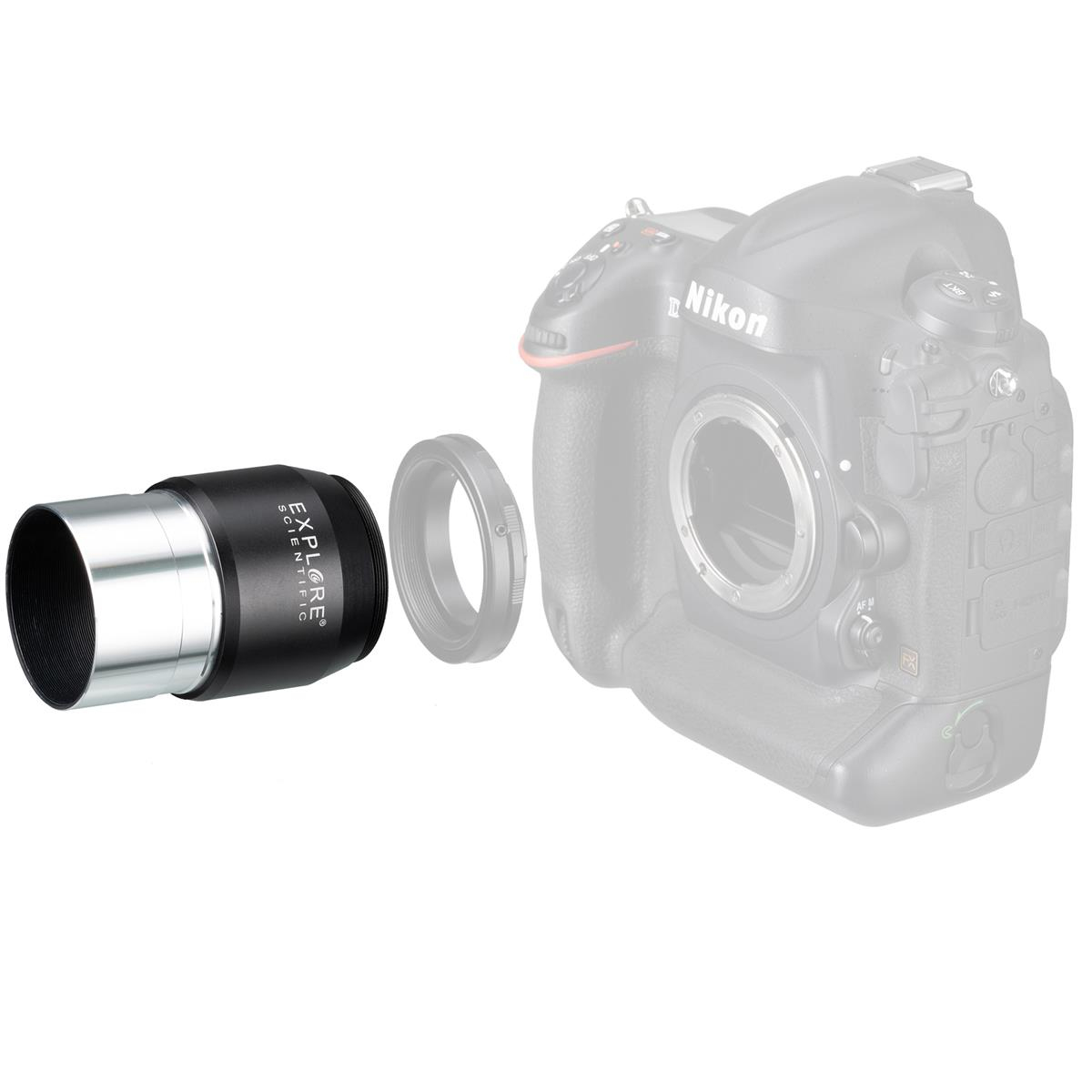

This field flattener has a 2inch (50.8mm) plug-in connection on the telescope side, with which it is inserted into the telescope instead of an eyepiece or star diagonal mirror. On the camera side, there is a standardised M48x0.75mm connection thread. This M48 connection thread offers a larger free inner diameter than the usual T2 (M42) thread and prevents vignetting when using large camera sensors. With an optionally available and camera-specific adapter ring, a DSLR camera can be connected to it. The working distance is already set at 55mm. Of course, mirrorless cameras or special astro cameras can also be used with the M48 thread connection. For this, the appropriate M48 spacer sleeves or adapters are additionally required to set the right working distance of 55mm. This must always be done with every corrector or field flattener so that the best possible field flattening is achieved.
Features:
The kit includes:
